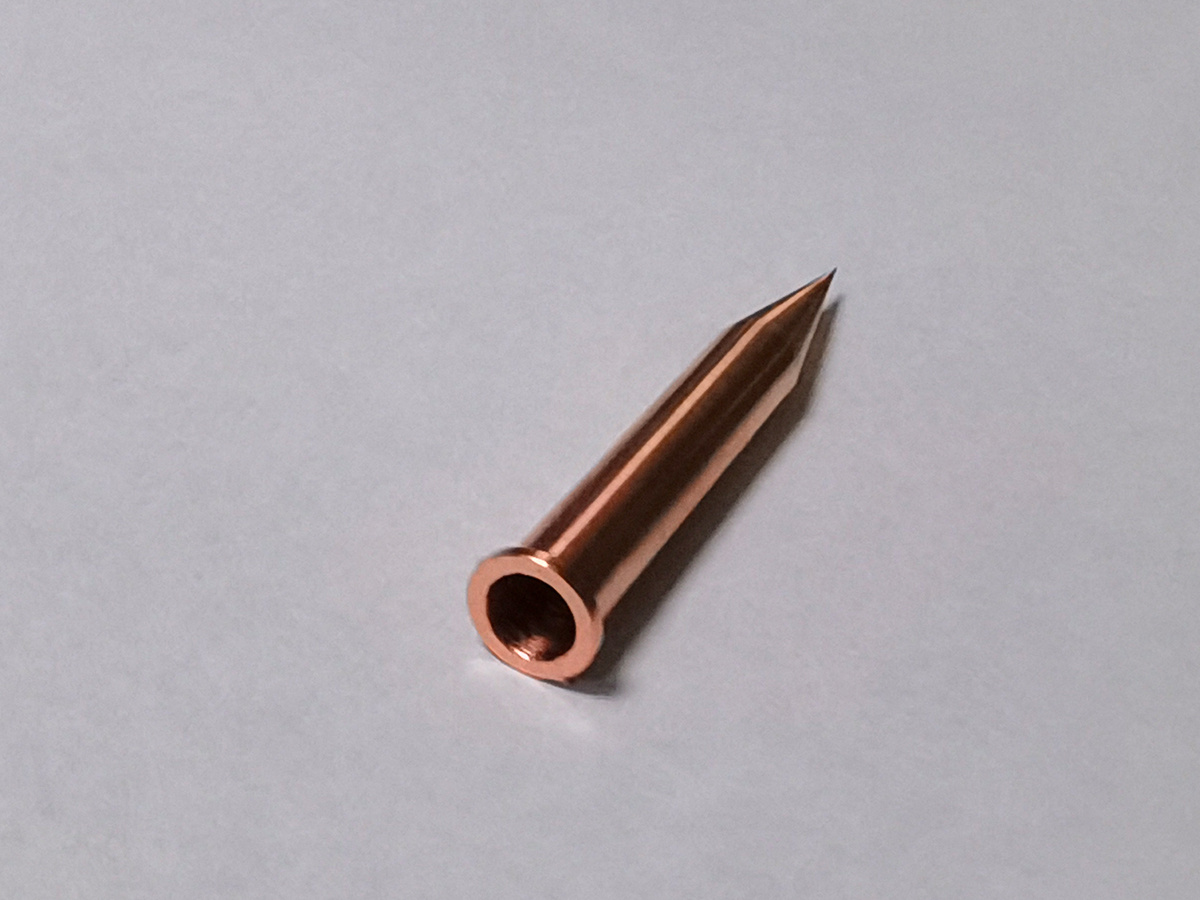

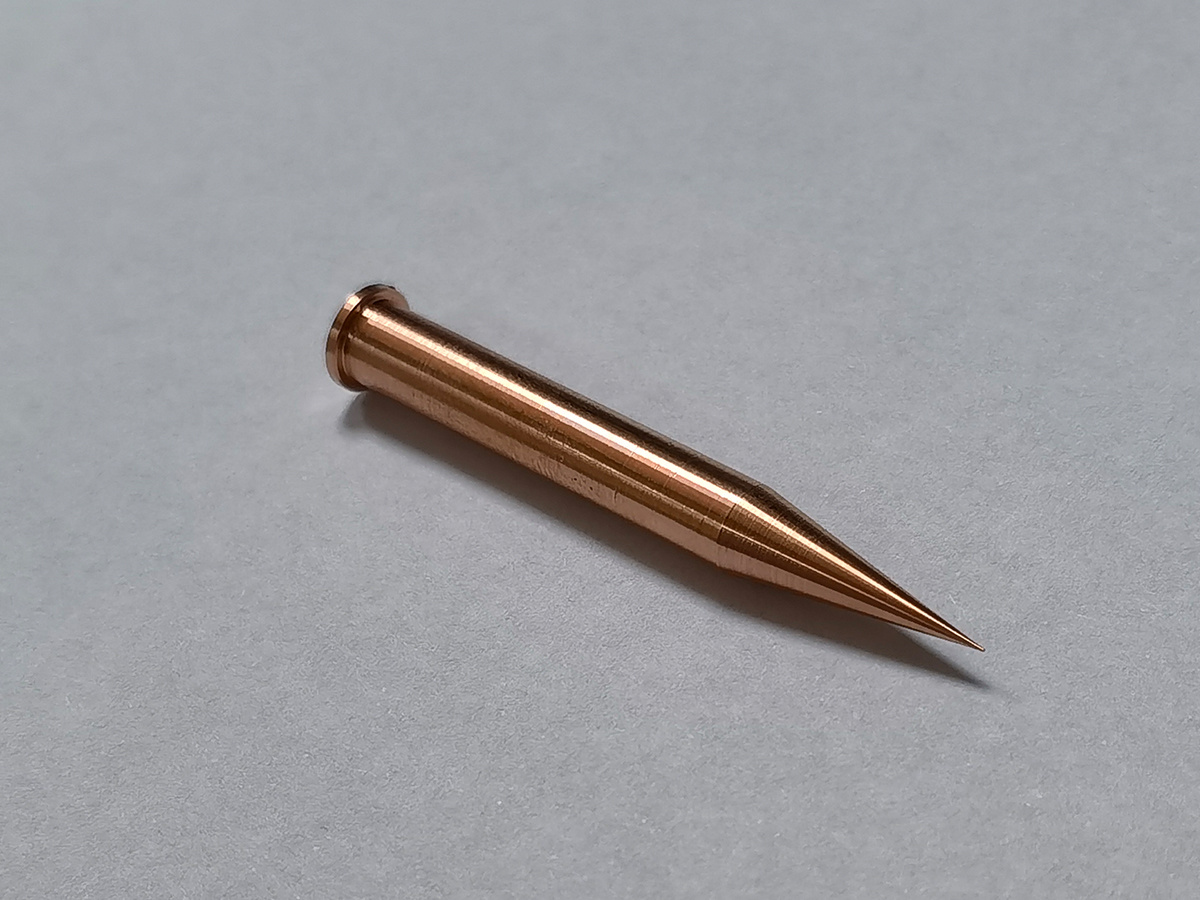

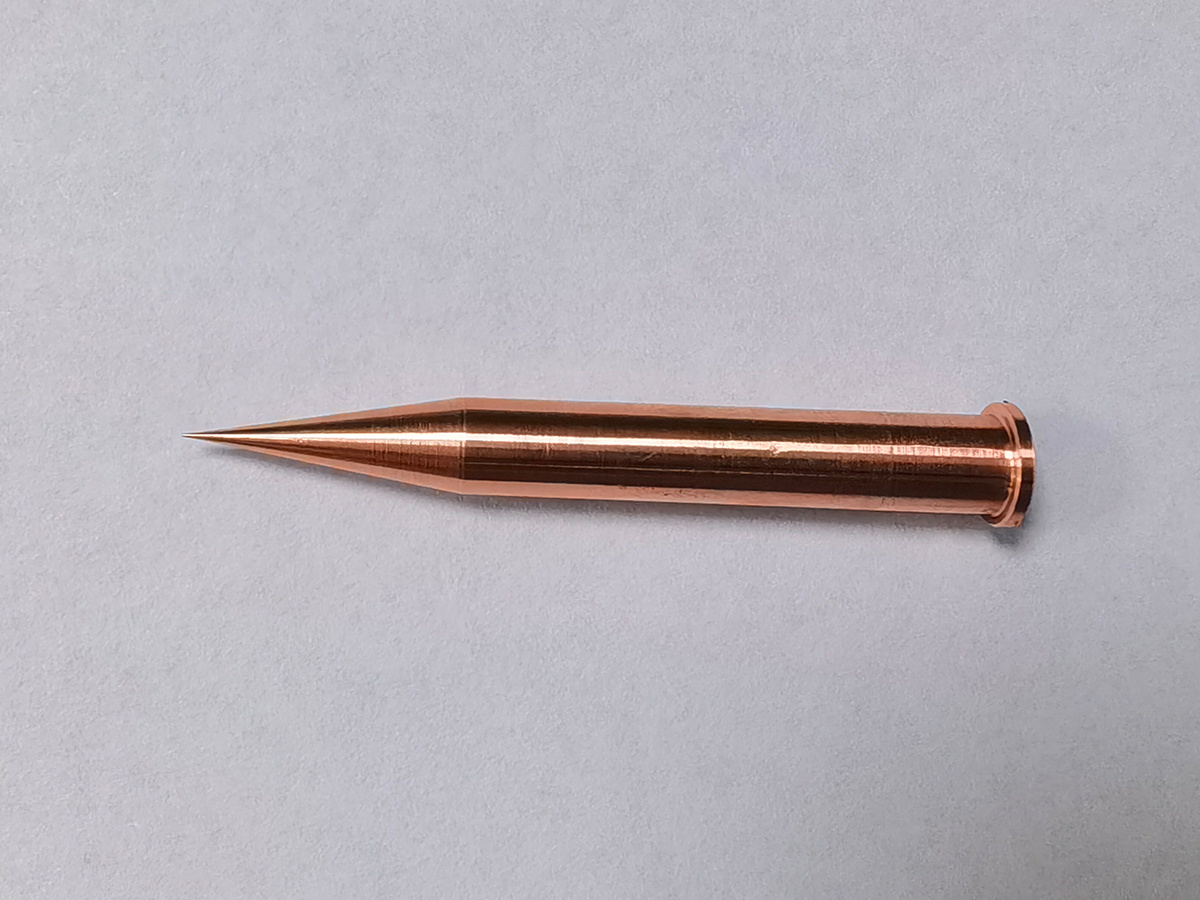

Copper Electrode Tip/Factory Direct/Precision Size Control
Purple Copper Electrodes / Precision CNC / Factory Direct / Customizable Material: This product is made of high-quality purple copper (copper content ≥ 99.9%), which offers excellent conductivity and good corrosion resistance. Purple copper electrodes are widely used in the manufacture of high-precision electrical equipment and electronic products, effectively enhancing product performance and extending service life. Manufacturing Process: The primary manufacturing process is precision CNC machining. Using computer numerical control (CNC) technology, fine cutting and engraving are performed. Each product undergoes a strict process flow to ensure precision and consistency in every detail. CNC machining enables the production of complex shapes and high-precision products, making it especially suitable for electrode production. Quality Control Standards: 1.Material Inspection: Every batch of purple copper material undergoes strict chemical composition and physical property testing to ensure it meets industry standards. 2.Dimension Control: Precision is controlled within ±0.01mm to ensure high accuracy and consistency in the machining dimensions. 3.Surface Quality: The surface is free of significant scratches, rust, or other defects, with smoothness reaching Ra0.4 or below. 4.Electrical Performance: Conductivity ≥ 98% IACS, meeting high conductivity requirements. Surface Treatment: We offer various surface treatment options, including plating, polishing, oxidation, and more, to meet the requirements of different applications and enhance electrode durability and corrosion resistance.
Category:
Key Words:
Table Parameter
| Product Name | Purple Copper Conductive Electrode / Copper Electrode / Purple Copper Contact Point / Copper Electrode Rod / Copper Electrode |
| Mold Fee | Negotiable based on your requirements |
| Material | Purple Copper, Customizable |
| Material Thickness | 0.03mm, 0.05mm, 0.06mm, 0.07mm, 0.08mm, 0.1mm, 0.15mm, 0.2mm |
| Shape | Common spring sheet types include compression springs, tension springs, and torsion springs |
| Conductivity | ≥ 98% IACS |
| Density | 8.92 g/cm³ |
| Tensile Strength | 210 MPa |
| Elongation | 25% |
| Hardness | Approximately HV90 (varies based on surface treatment) |
| Tolerance | ±0.01mm |
| Processing Standards | High tolerance requirements, excellent quality, mass production capabilities, stable material |
| Packaging | Custom packaging available |
| Minimum Order Quantity | Negotiable |
| Lead Time | Batch production cycle typically 5-15 days based on quantity; urgent orders can be discussed for earlier delivery |
| Price | Pricing is determined by various factors, primarily material type, thickness, and order quantity |
Application Description
Purple Copper Electrodes are used in:
Electrical Equipment: High-precision electrical contact points, electrical switches, plugs, etc.
Electronic Products: Circuit boards, semiconductor packaging, and other high-precision electronic components.
Electroplating Industry: Electrodes and anode materials for electroplating applications.
Automotive and Aerospace: Electrode components used in high-temperature environments.
Questions and Answers
| 1.How is the conductivity of purple copper electrodes? Our purple copper electrodes have a conductivity of ≥ 98% IACS, ensuring efficient conduction in various electronic devices. |
| 2.Can you customize purple copper electrodes in different shapes? Yes, we can customize various shapes based on customer requirements, including irregular and complex structures. |
| 3.What is the surface smoothness and surface treatment? Our purple copper electrodes can achieve surface smoothness of Ra0.4 or below. Surface treatments such as plating, polishing, and oxidation are available upon request. |
| 4.What is the precision of your products? Our CNC-machined purple copper electrodes achieve dimensional precision within ±0.01mm, ensuring high consistency and accuracy. |
| 5.What is the maximum size limitation for purple copper electrodes? The maximum size is determined by equipment limitations, typically up to 100mm in diameter and 200mm in length. Custom sizes can be accommodated upon request. |
| 6.Are samples provided and how are they charged? Most of our products offer free samples. For custom products or those with higher costs, sample charges may apply. Bulk orders are priced based on unit prices. |
| 7.Do you offer custom processing? Yes, we offer custom processing based on your material specifications, technical requirements, and drawings. |
| 8.What is the lead time for orders? For bulk orders, the processing time is generally 5-15 days, depending on quantity. In urgent cases, please discuss with us for faster delivery. |
| 9.What payment methods do you accept? Since this is a custom product, full payment is required in advance. We support various payment methods: 1.Letter of Credit (L/C) 2.Telegraphic Transfer (T/T) 3.PayPal (for small orders) 4.Western Union (for some countries) 5.Alipay/WeChat Pay (for certain regions) 6.Bank Transfer |
| 10.What if the products are defective? Before mass production, we send samples for your approval. If the products do not meet the required standards, we will replace them free of charge if the issue is on our end. |
Factory Description
We have a full set of etching production equipment and mature processing technology. We can manufacture products in any shape with mesh sizes as small as 0.1mm, according to your requirements.
Our Advantage
Factory Direct Shipping
Our products undergo 100% QC checks before shipment, and we ensure compliance with international standards. If you require specific certifications for your target market, just let us know, and we'll meet those requirements.
Experienced Design and Manufacturing Team
We work closely with customers from the design phase to help avoid potential product flaws, ensuring both the functionality and design meet expectations.
Excellent Supply Chain Management
We can quickly adjust production schedules to meet your urgent deadlines, whether it's for large bulk orders or smaller rush orders.
OEM & ODM Support
We offer the option to print your logo or other customizations.
Strict Quality Control
Our products undergo 100% QC checks before shipment, and we ensure compliance with international standards. If you require specific certifications for your target market, just let us know, and we'll meet those requirements.
